Technical data · Electronic locks Technische Daten · Elektronische Schlösser

AMADEO Electronic Locks

AMADEO Elektronische Schlösser

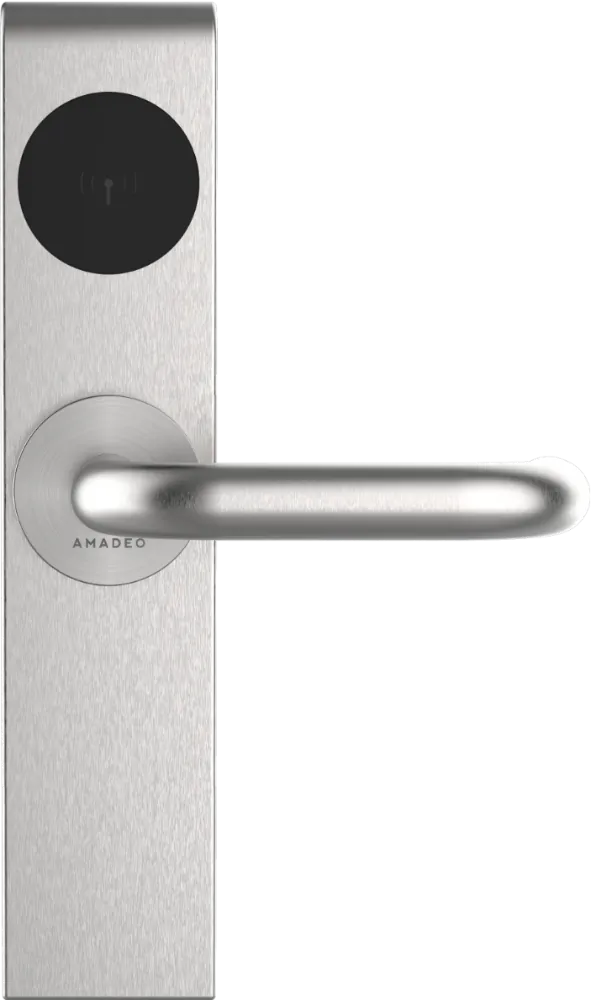

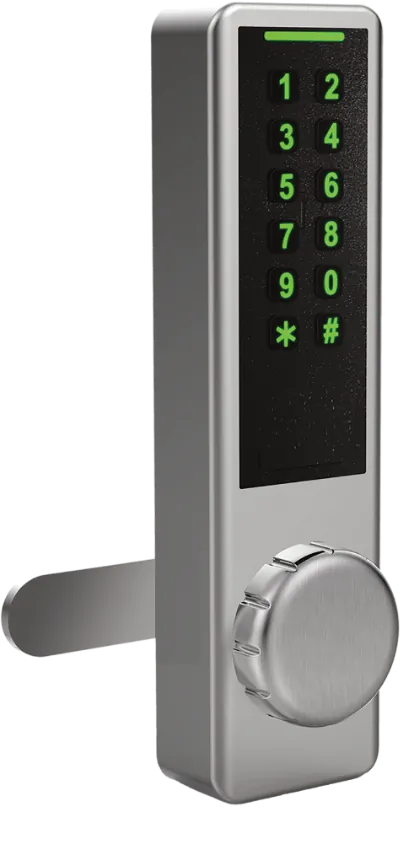

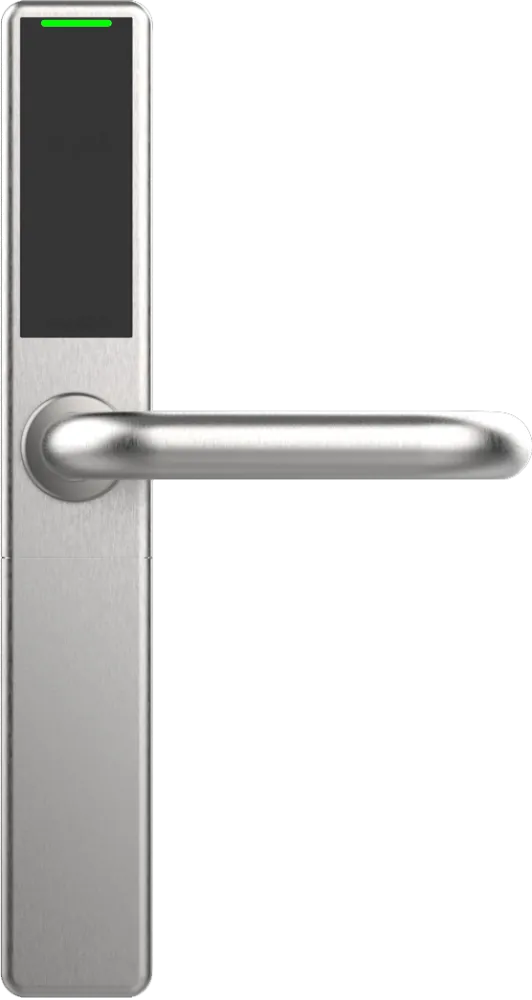

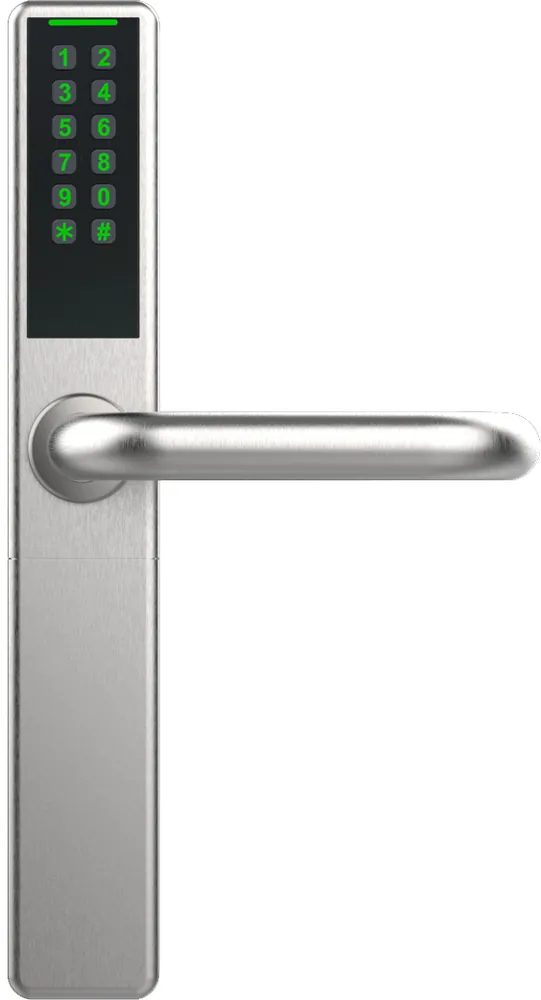

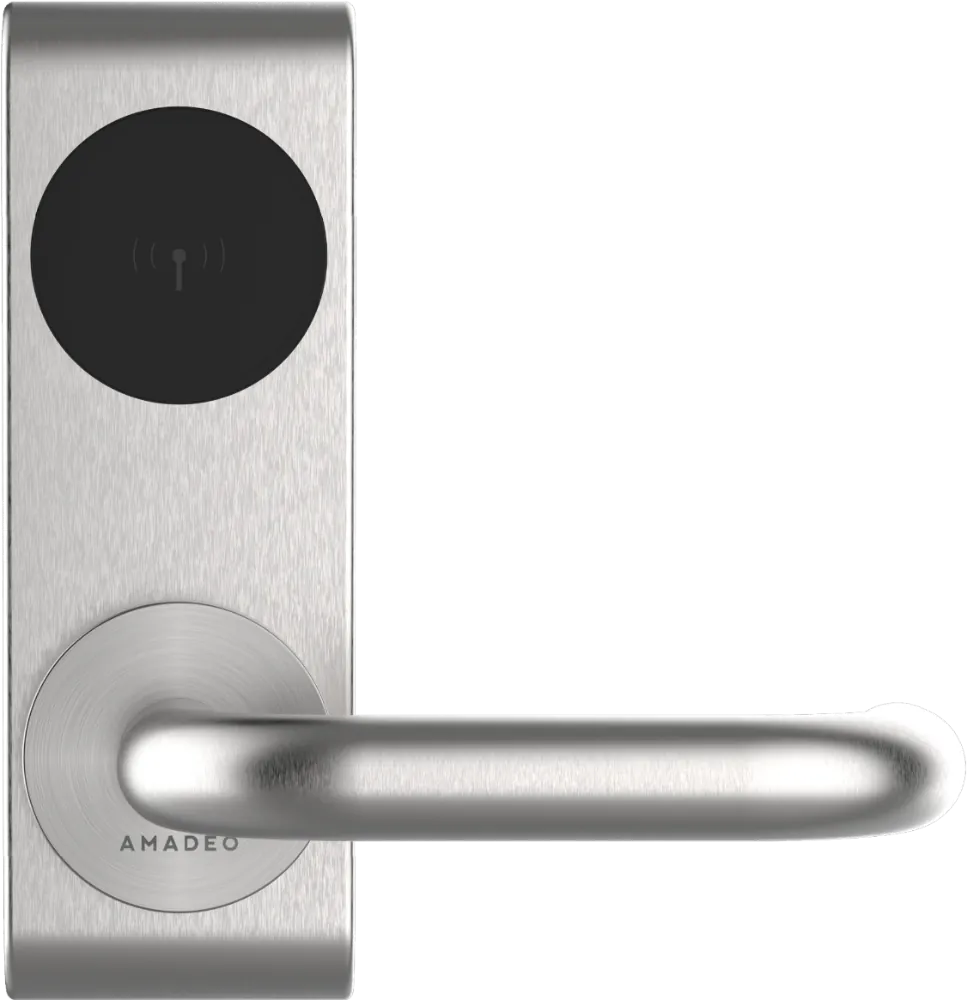

Electronic door fittings for professional buildings – from short escutcheon to keypad lock. Every model shares the same electronics, radio standard and cloud connection.

All data applies to the entire product family.

Outdoor versions and models with vandal protection, additional drill protection and bullet resistance on request.

Elektronische Beschläge für Türen im professionellen Bereich – vom Kurzschild bis zum Tastaturschloss. Alle Modelle teilen Elektronik, Funkstandard und Cloud-Anbindung.

Alle Angaben gelten für die gesamte Produktfamilie.

Außenversionen sowie Modelle mit Vandalismusschutz, zusätzlichem Bohrschutz und durchschusssicherer Ausführung auf Anfrage.

Technical data

Technische Daten

Access & technology

Technologies
BLE, NFC, RFID, PIN code and Wireless Online
Mobile access
AMADEO app – BLE or PWA
Check-in
At the door
Access status
Optical signals in green, red and blue
Encryption
Variable, for increased security

Software & integration

Cloud
Full integration with AMADEO IntegrA Cloud
Monitoring
Real-time access monitoring
Interface
API for easy third-party integration
Event logs
Unlimited in online mode
Time zones
Unlimited
Firmware update
Via NFC

Radio & range

Radio frequency
EU868 MHz and US915 MHz
Lock – access point
Up to 25 m
BLE read range
Up to 10 m

Power

Battery life
Three years as standard, extendable
Battery status
Notifications in offline and online mode
Wireless charging
In preparation

Mechanics & installation

Mortise lock
Compatible with EURO-DIN or ANSI
Door handing
Convertible for left- or right-hand mounting
Lever
Clutch lever for effortless operation
Panic function
For emergency exits
Sensors
Door contact and privacy detection
Emergency key
Optional via FreeFlex

Environment & material

Operating temperature
−20 °C to 60 °C
Humidity
0 to 95 %
Corrosion
Tested with 96-hour salt spray
Resistance
Air, water, earth and fire
Outdoor use
Versions available
Protection variants
Vandal protection, additional drill protection, bullet-resistant
Material
Stainless steel and Makrolon polycarbonate
Origin
Made in Austria

Zugang & Technologie

Technologien
BLE, NFC, RFID, PIN-Code und Wireless Online
Mobiler Zugriff
AMADEO-App – BLE oder PWA
Check-in
Direkt an der Tür
Zutrittsstatus
Optische Signale in Grün, Rot und Blau
Verschlüsselung
Variabel, für erhöhte Sicherheit

Software & Integration

Cloud
Vollständige Integration mit AMADEO IntegrA Cloud
Überwachung
Zutrittsüberwachung in Echtzeit
Schnittstelle
API für einfache Integration von Drittanbietern
Ereignisprotokolle
Unbegrenzt im Online-Modus
Zeitzonen
Unbegrenzt
Firmware-Update
Via NFC

Funk & Reichweite

Funkfrequenz
EU868 MHz und US915 MHz
Schloss – Zutrittspunkt
Bis zu 25 m
BLE-Lesereichweite
Bis zu 10 m

Energie

Batterielebensdauer
Standard drei Jahre, verlängerbar
Batteriestatus
Meldungen im Offline- und Online-Modus
Drahtloses Laden
In Vorbereitung

Mechanik & Montage

Einsteckschloss
Kompatibel mit EURO-DIN oder ANSI
Türmontage
Umstellbar für links- oder rechtsseitige Montage
Drücker
Kuppelbar für mühelose Bedienung
Panikfunktion
Für Notausgänge
Sensorik
Türkontakt- und Privatsphäre-Erkennung
Notfallschlüssel
Optional via FreeFlex

Umgebung & Material

Betriebstemperatur
−20 °C bis 60 °C
Luftfeuchtigkeit
0 bis 95 %
Korrosion
Getestet mit 96-Stunden-Salznebel
Beständigkeit
Luft, Wasser, Erde und Feuer
Außeneinsatz
Versionen verfügbar
Schutzvarianten
Vandalismusschutz, zusätzlicher Bohrschutz, durchschusssicher
Material
Edelstahl und Makrolon-Polycarbonat
Herkunft
Hergestellt in Österreich
Finishes
Oberflächen
  • Stainless steelEdelstahl
  • Matt blackSchwarz matt
  • Satin goldGold satin
  • Custom finishesIndividuelle Sonderoberflächen
Certifications · Technologies
Zertifizierungen · Technologien
  • CE
  • UKCA
  • FCC
  • RoHS
  • IP66
  • EN 1363-1
  • EN 1634-1
  • EN 16034
  • EN 14846
  • EN 62262
  • EN 15684
  • EN 1522
  • EN 1523
  • iOS
  • Android
  • NFC
  • RFID
  • Mobile Key
  • Bluetooth LE
  • API
  • Made in Austria
